Building Material Shops Horizontal Triplex Single Acting Reciprocating Piston Mud Pump

Place of Origin : Henan, China

Brand Name : Be Focus

Application : road, bridge, dam, mine construction, Public Buildings

Features : Laser leveling ruler

Condition : New

Production Capacity : 0-200 m/min

Warranty : 1 Year

Dimension(L*W*H) : 1100*995*650mm

Power : 7.5, 7.5kw

Voltage : none

Applicable Industries : Building Material Shops, Construction works

Weight (KG) : 500

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Engine, Motor

UNIQUE SELLING POINT : High operating efficiency

Product name : mud pump

Keywords 1 : Drilling Mud Centrifugal Pump

Keywords 2 : small mud pump

Type : oil drilling mud pump

Unit weight : 500kg

Size : 1100*995*650mm

After-sales Service : Video Technical Support Onlin

Packaging Details : Thickened specifications of superior wood provide protection for your goods.
Of course, we can also pack according to your needs.

Price : $2,200.00/sets >=1 sets

MOQ : 1 set

Contact Now

Pruduct Show

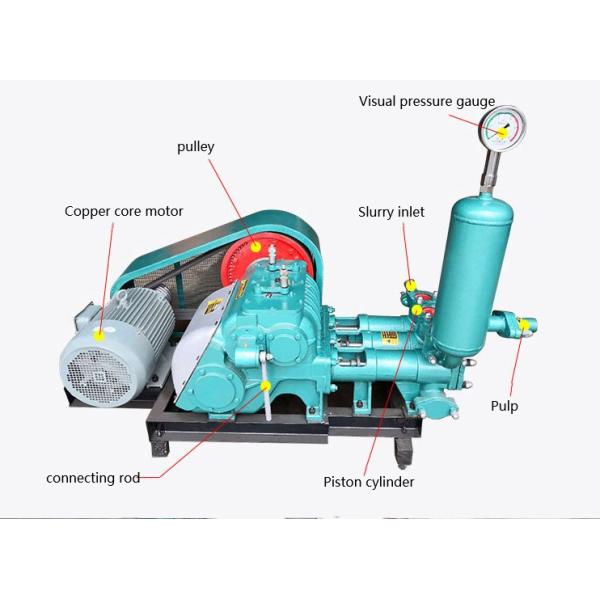

Mud pump

Mud pump is a widely used machine nowadays, which is used to transport mud into the borehole during drilling

Details of the product

Its structure is simple, its operation is also very simple, its volume is small, and its transportation, installation, and use are very convenient.

Model division

BW150 mud pump

It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It
is used in geological core drilling engineering to deliver flushing fluid mud to the borehole. The pump consumes less energy, is
flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.

BW150 variable frequency mud pump

It is a horizontal, three cylinder reciprocating single acting piston pump that can change eight different pressures and flows. It is used in geological core drilling engineering to deliver flushing fluid mud to the borehole.
The pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to
relocate.

The BW-250 type (grouting pump) mud pump

The BW-250 type (grouting pump) mud pump is a horizontal three cylinder reciprocating single acting piston pump with two cylinder diameters and four speeds. The displacement and hole depth can be adjusted according to the purpose. The deepest hole can be used with a 1500 meter drilling rig or used for cement slurry pouring. This pump consumes less energy, is flexible in operation, is high-quality and durable, has good decomposability, and is easy to relocate.

Product Paramenters

Product Name	BW-150 Mud Pump	Drive power	7.5Kw
Maximum flow	150L/min	Maximum pressure	7Mpa
Suction pipe diameter	50mm	Drain pipe diameter	32mm
Weight	500Kg

Product Name	150 frequency conversion mud pump	Drive power	7.5Kw
Maximum flow	150L/min	Maximum pressure	10Mpa
Suction pipe diameter	Outer diameter 50mm Inner diameter 35mm	Drain pipe diameter	Outer diameter 30 mm Inner diameter 23mm
Weight	330Kg

Product Name	BW-250 Mud Pump	Drive power	15Kw
Maximum flow	250L/min	Maximum pressure	8Mpa
Suction pipe diameter	75mm	Drain pipe diameter	50mm
Drilling hole depth	Diamond drilling＜1500 Alloy drilling＜1000	Weight	760kg
Overall dimensions	1100995650（mm）

Equipment parts

Ball valve and ball valve seat

Plunger

Sealing pressure ring and sealing ring

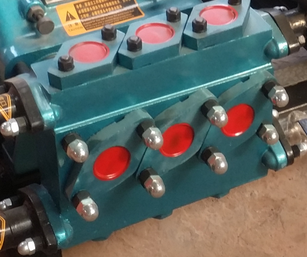

Cylinder head

Pressure transmitter
Flow meter

Pig iron oil pipe sleeve
The softer the shaft, the less it will grind

Application Scenario

It is mainly used for tunnel excavation and maintenance, road, bridge, dam, mine construction, and foundation treatment projects for high-rise buildings, as well as various grouting construction projects. It is also used for curtain grouting (greater than 5Mpa) of dam foundations, consolidation grouting, and high slopes, long-distance anchor grouting, and large displacement long-distance transportation of grout, as well as high-pressure grouting that requires pressure.
