Long Lifetime Micro Secondary Structure Conveying Mortar Pump for Concrete Pumping

Name: Long Lifetime Micro Secondary Structure Conveying Mortar Pump for Concrete Pumping
Brand: Be-focus
Price: 670.00 USD

Wholesale Long Lifetime Micro Secondary Structure Conveying Mortar Pump for Concrete Pumping from china suppliers

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Construction site, Road hardening, Tunnel railway, Canal casting, expressway, cement pavement

Showroom Location : None

Condition : New

Power Type : Electric

Place of Origin : Henan, China

Brand Name : Be-focus

Weight : 260 kg

Dimension(L*W*H) : 1.2*0.48*0.94m

Warranty : 1 Year

UNIQUE SELLING POINT : Long lifetime

Max. vertical conveying distance : 40M

Max. horizontal conveying distance : 150M

Productivity : 3M³/H

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, Pump, Other

Packaging Details : Standard export wooden box packaging

Port : Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot

Supply Ability : 1000 Set/Sets per Month

Price : $670.00/sets 1-9 sets

MOQ : 1 set

Contact Now

Products Description

Long Lifetime Micro Secondary Structure Conveying Mortar Pump for Concrete Pumping

The concrete grouting pump is mainly used for grouting construction, maintenance and reinforcement of construction projects such as roads, bridges, dams, mines, etc; It has the advantages of compact structure, good sealing performance, high pressure, convenient piston replacement, and simple assembly and maintenance.

Pruduct Show

Product Paramenters

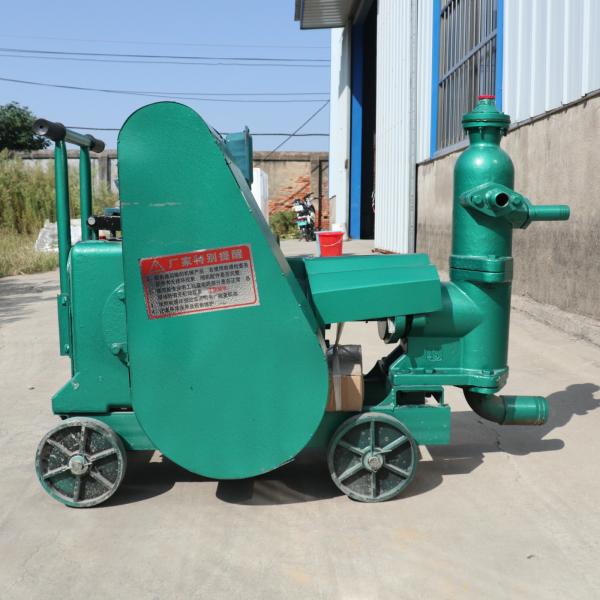

Piston type single cylinder pump

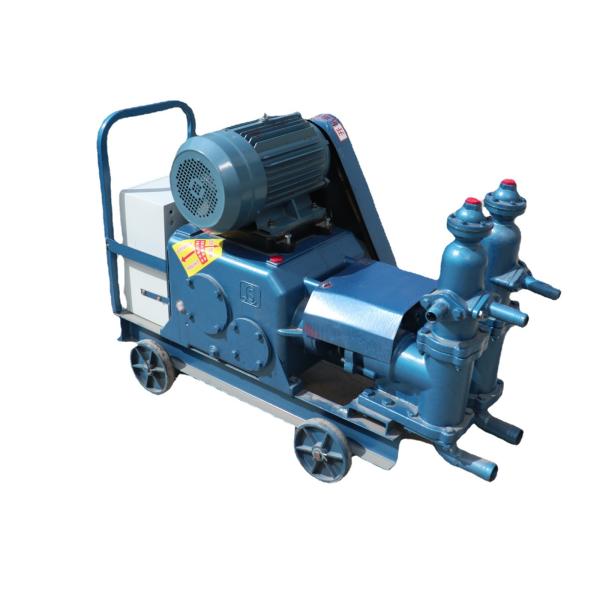

Piston type double cylinder pump

	Piston type single cylinder pump	Piston type double cylinder pump
Rated working pressure	2 Mpa	4Mpa
Vertical conveying distance	30m	50m
Horizontal conveying distance	80m	200m
Inner diameter of discharge pipe	32/38mm	32mm
Inner diameter of slurry inlet pipe	51mm	51mm
Motor power	4kw	5.5kw
Conveying capacity	3m³/h	6m³/h
Total weight	260kg	400kg
Overall dimensions	1033×474×940mm	1250×550×900mm

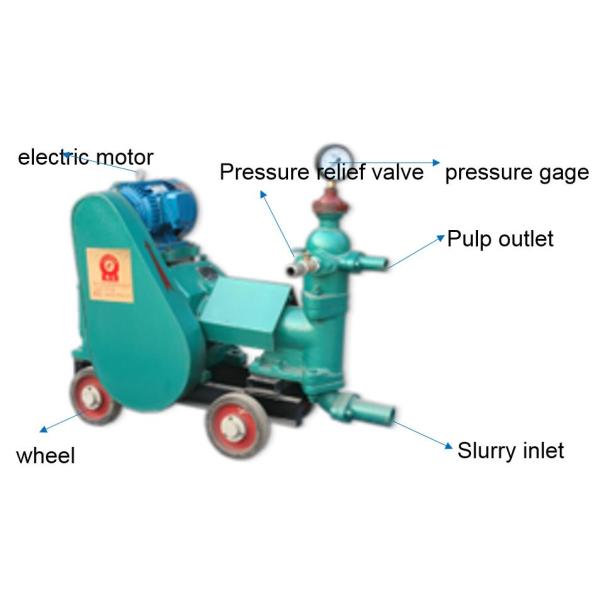

Details Images

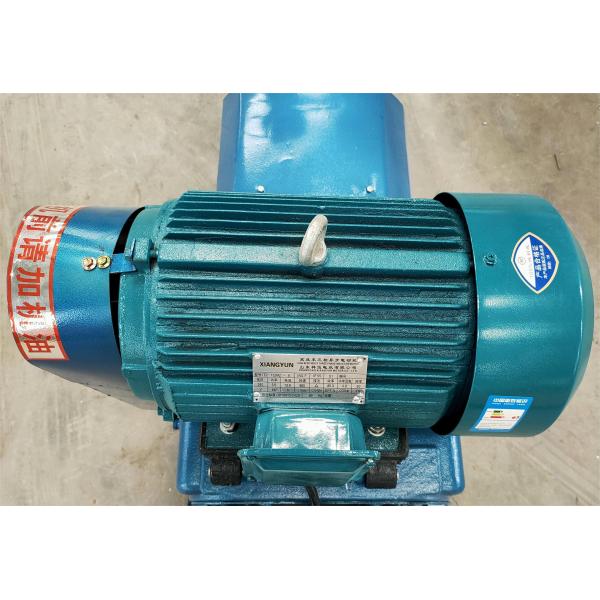

01、electric machiner

Copper core motor, high quality standard, quality assurance, and durability

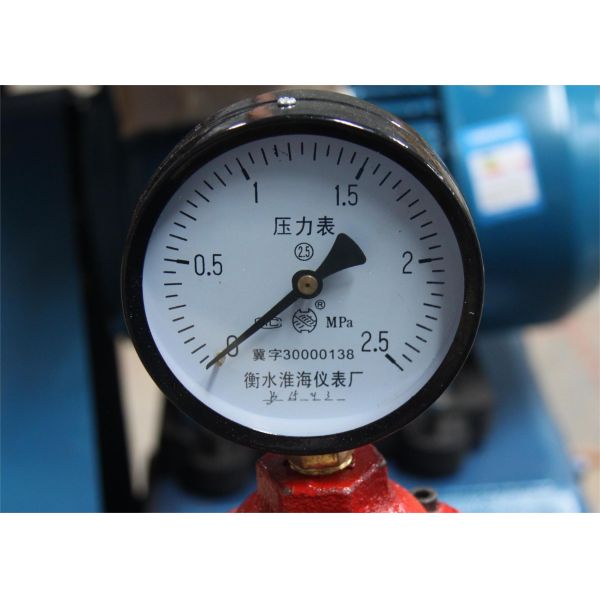

02、Visual pressure gauge

Monitor grouting pressure at any time to reduce accident rate

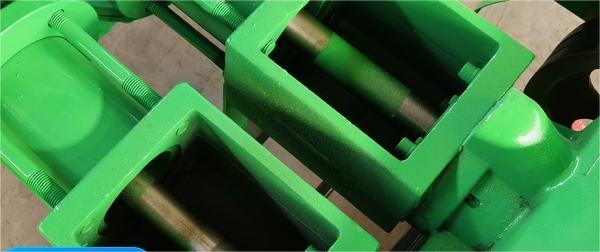

03、High-strength piston

Maintain continuous working ability. Attach a protective cover to form protection

04、Fixed chassis

Integrated design effectively secures the machine during operation and facilitates movement when not in operation

Product packaging

The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.

Company Profile

Henan Be-focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be-focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

SALES TEAM

FACTORY EMPLOYEES

Excellent partner

Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.

FAQ

1.Q: Are you the original manufacturer?

A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?

A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time

A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
