Cost-saving Commercial Concrete Mortar Casting Charging Machine for Building Projects

Place of Origin : Henan, China

Brand Name : Be-focus

Application : foundation construction, Public Buildings

Features : dynamic energy saving

Condition : Used

Production Capacity : 2 modular house per day

Warranty : 1 Year

Dimension(L*W*H) : 2800*1300*1500mm

Power : 30, 30kw

Voltage : 380V

Applicable Industries : Building Material Shops, Construction works

Weight (KG) : 1450

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : Motor, power system

UNIQUE SELLING POINT : S valve system

Name : Concrete Delivery Pump

Packing : Wooden Case

Application Site : Engineering Construction

After-sales Service : Video Technical Support Onlin

Use : building project

Type : electric,diesel

Packaging Details : Thickened specifications of superior wood provide protection for your goods.
Of course, we can also pack according to your needs.

Port : Tianjin Port,Qingdao Port,Shanghai Port,Lianyungang Prot

Supply Ability : 1000 Set/Sets per Month

Price : $4,365.96/sets >=1 sets

MOQ : 1 set

Contact Now

Pruduct Show

Cost-saving Commercial Concrete Mortar Casting Charging Machine for Building Projects

Equipment structure

1. Distribution mechanism 2, mixing mechanism 3, lubrication system 4, hopper 5, hopper cover 6, hydraulic oil tank 7. Fuel tank 8, hydraulic system 9, electrical system 10, consignment bridge 11, power system 12, cooling system 13. Hood 14, electric control cabinet 15, cleaning system 16, frame 17, support wheel 18, pumping system

Model division

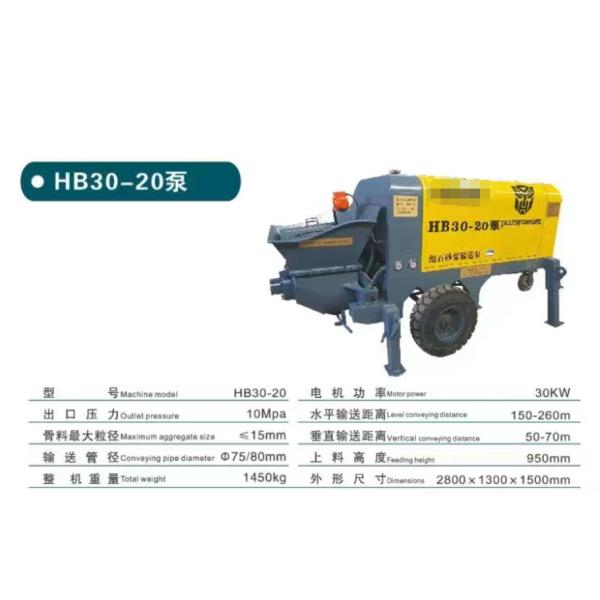

1.HB30--20

Outlet pressure：10Mpa

Maximum aggregate size：15mm

Conveying pipe diameter:75/80mm

Operating Weight:1450kg

Motor power:30KW

Horizontal conveying distance:150-260m

Vertical conveying distance:50-70m

Feeding height:950mm

External machine size:

2800*1300*1500mm

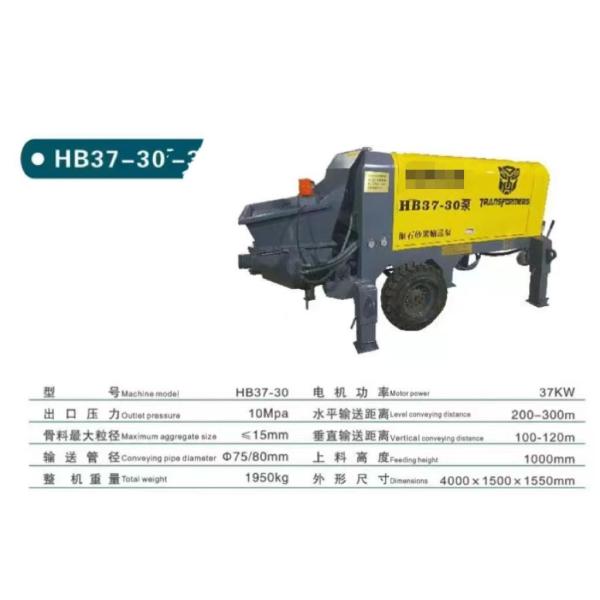

2.HB37--30

Outlet pressure：10Mpa

Maximum aggregate size：15mm
Conveying pipe diameter:75/80mm
Operating Weight:1950kg
Motor power:37KW
Horizontal conveying distance:200-300m
Vertical conveying distance:100-120m
Feeding height:1000mm
External machine size:
4000*1500*1550mm

3.HB45--40

Outlet pressure：10Mpa

Maximum aggregate size：15mm
Conveying pipe diameter:75/80mm
Operating Weight:1450kg
Motor power:30KW
Horizontal conveying distance:150-260m
Vertical conveying distance:50-70m
Feeding height:950mm
External machine size:
2800*1300*1500mm

4.HB55--50

Outlet pressure：11Mpa

Maximum aggregate size：30mm
Conveying pipe diameter:100/125mm
Operating Weight:3200kg
Motor power:45-55KW
Horizontal conveying distance:150-260m
Vertical conveying distance:80-100m
Feeding height:1200mm
External machine size:
4500*1800*1700mm

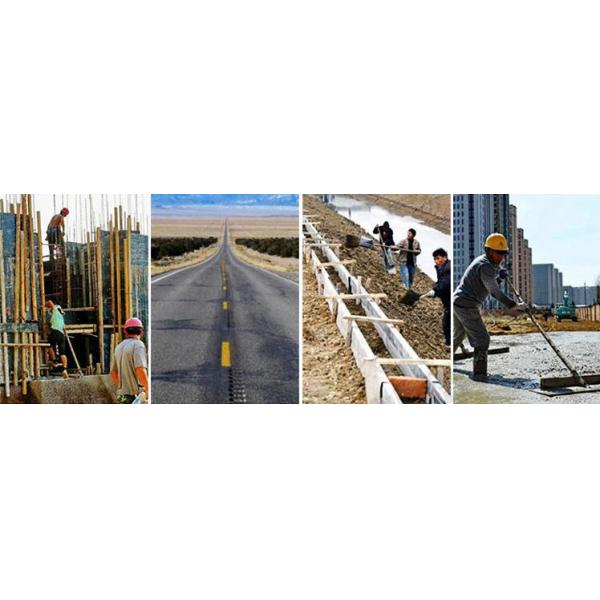

Application scenario

1.The equipment can be used for foundation construction, water conservancy construction, tunnel construction, bridge construction, slope protection construction and high-rise building construction

2.This equipment is necessary for transporting concrete and other materials. However, suitable pumps can be selected according to customers' needs, mainly based on the data of how much material, how much pressure, and how far to transport

Our Advantages

Car pump

1. Special PLC intelligent system 2. Full-hydraulic open circuit hydraulic system 3. High-power air-cooled heat dissipation, equipped with Kunlun and Great Wall hydraulic oil. 4. The advanced S valve system 5. Dongfeng and other chassis, the latest national emission standard 6. Brand oil extraction machine is adopted 7. Equipped with wireless remote control

8. Dynamic energy saving, oil pump displacement

Why Choose Us

Company profit

Henan Be-focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be-focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Main products

Hydraulic I-beam cold bending machine, grid arch splay moldin machine, combined hydraulic punching and shearing machine
Machine,hoisting dry spraying unit, small prefabricated component production line, grouting pump, mixing bucket, etc Product.
Widely used in tunnels, bridges, mines, railways, highways, subways, water conservancy, municipal

Company culture

All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The
principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is
your reliable and long-term partner.

Packing

Production Capacity

The company cooperates with

all major engineering projects

R&D capability

Factory inspection report

FAQ

Q1.What are your terms of payment?
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms?
Answer: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine?
Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions?
Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed.
Q6. Do you test all goods before delivery?
Answer.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.
Q7. Do you give priority to providing vulnerable parts to trading customers?
Answer: Yes, we have the records of your customers and are more willing to provide them with accessories.
Q8: How do you maintain a long-term good relationship with our business?
Answer: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine?
Ans.: All our products have CE and ISO9001 certificates.
