Wet Shotcrete Spray Machine for Tunnel Project High Operating Efficiency Guaranteed

Name: Wet Shotcrete Spray Machine for Tunnel Project High Operating Efficiency Guaranteed
Brand: Be-focus
Price: 19 USD

Wholesale Wet Shotcrete Spray Machine for Tunnel Project High Operating Efficiency Guaranteed from china suppliers

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Showroom Location : None

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2021

Warranty of core components : 1 Year

Core Components : Motor

Condition : New

Max. Conveying Distance : 150m

Max Aggregate Size : 15

Hose Inner Diameter : 57 mm

Place of Origin : Henan, China

Brand Name : Be-focus

Power : 22kw

Dimension(L*W*H) : 3.9*1.5*1.5m

Weight : 2000 kg

Warranty : 1 Year

UNIQUE SELLING POINT : High operating efficiency

Packaging Details : Standard export wooden box packaging

Port : Tianjin port, Qingdao port, Shanghai port and Lianyungang Port

Supply Ability : 1000 Set/Sets per Year

Price : $19,800.00/sets 1-19 sets

MOQ : 1 set

Contact Now

Pruduct Show

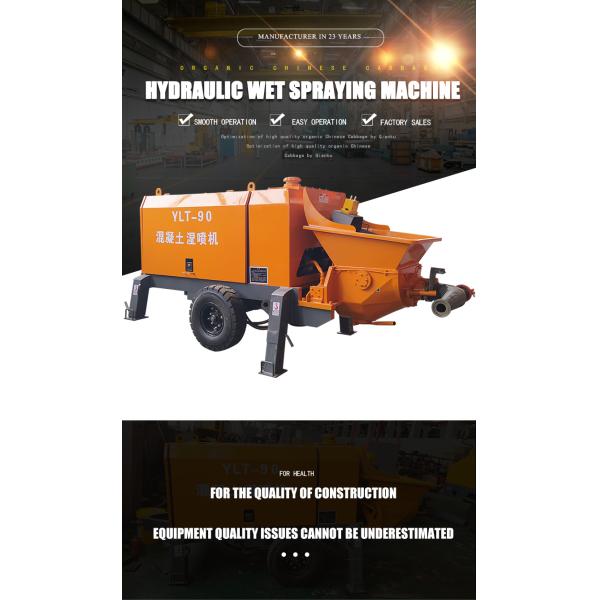

Wet Shotcrete Spray Machine for Tunnel Project High Operating Efficiency Guaranteed

The hydraulic wet spraying machine has obvious advantages such as low operating dust, less spraying rebound, protecting the working environment, saving raw materials, and improving the quality of the spraying layer. Adopting hydraulic pumping, the system has high reliability and stable delivery capacity, ensuring fast, uniform, and stable shotcrete operations. The hydraulic wet spraying machine uses the main motor to drive the hydraulic pump to generate power, causing the pistons of two working cylinders to alternately move back and forth, causing one working cylinder to suck in materials and the other working cylinder to push materials. Each cylinder is connected to each other, causing the concrete inside the working cylinder to be pushed out and enter the mixed flow pipe through the S pendulum tube. After being blown by compressed air at the mixed flow pipe, it reaches the nozzle through the conveying pipe, and a certain proportion of accelerator is sprayed at the nozzle. After mixing, spray directly on the surface to be sprayed.

Product Structures

Equipment model	YLT-90	throughput	3-8m³/H
Voltage level	380V	Feeding height	1100MM
Conveying distance	150/80M	Aggregate size	≤15MM
Motor power	22KW	Delivery pipe	φ57MM
Working wind pressure	0.4-0.6MPA	Host size	*3.91.51.5M*
System wind pressure	0.4-0.7MPA	OperatingWeight	2000KG

Product Paramenters

Usage scenario

Packaging & Shipping

Thickened specifications of superior wood provide protection for your goods.

Of course, we can also pack according to your needs.

Company Information

Henan Be-focus Mechanical Equipment Co.,Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be-focus Mechanical Equipment Co.,Ltd was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Many national construction teams choose to cooperate with us and look forward to working with you hand in hand.

FAQ

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

Q7.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.

Q8: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.

Q9.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
