380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines

Product Categories
Henan Beifuke Machinery Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines

Applicable Industries : Construction works , Energy & Mining

Showroom Location : None

Condition : New

Power Type : Electric

Place of Origin : Henan, China

Brand Name : Be Focus

Weight : 450 kg, 450 Kg

Dimension(L*W*H) : 1450*780*1100mm

Warranty : 1 Year

UNIQUE SELLING POINT : Short turning radius

Max. vertical conveying distance : Other

Max. horizontal conveying distance : Other

Productivity : 7M³/H

Machinery Test Report : Not Available

Video outgoing-inspection : Provided

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Product name : Double cylinder hydraulic grouting pump

Keyword : Double cylinder and double fluid

Application : Construction Engineering

Color : Customers' Requirement

MOQ : 1

Voltage : 380V/220V

Pressure : 0-10Mpa

Engine type : Electric motor

Product : 7M³/H

Packaging Details : Non fumigation wooden box packaging

Port : QINGDAO

Price : $2,500.00/sets 1-1 sets

MOQ : 1 set

Contact Now

Products Description
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Double cylinder double liquid grouting pump, also known as double liquid grouting pump, is a double cylinder double acting piston pump that can transport various media such as cement slurry, yellow mud, water glass, oil, water, and so on. It can transport two media simultaneously or one media separately, with stable performance, compact structure, and convenient operation and maintenance.
Product Paramenters
YZB-5
YZB-7
Discharge volume
5m³/h
7m³/h
working pressure
0-10Mpa
0-10Mpa
Motor power
7.5KW
11KW
Noise power level
110dB(A)
110dB(A)
Diameter of slurry outlet
32mm
32mm
Suction port diameter
64mm
64mm
Overall dimensions
1450*780*1100mm
1450*780*1100mm
total weight
380kg
420kg
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Details Images
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines

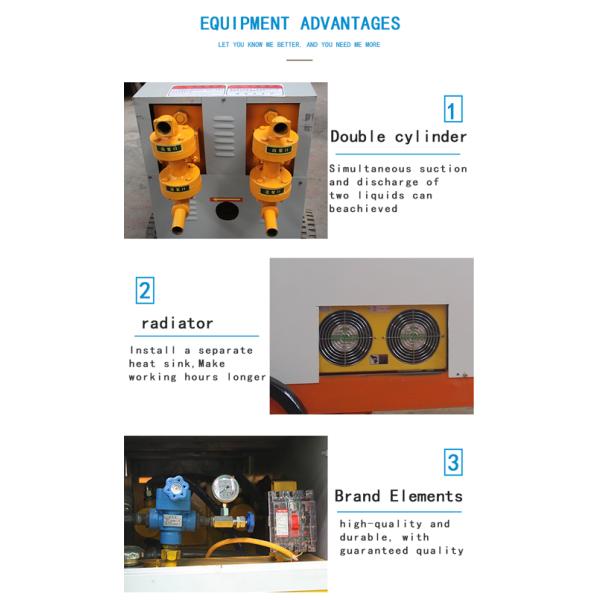

1、Double cylinder：Simultaneous suction and discharge of two liquids can beachieved 2、Radiator:Install a separate heat sink,Make working hours longer 3、Brand Elements:high-quality and durable, with guaranteed quality 4、Hydraulic drive:High pumping pressure long distance 5、Moving wheel:Compact structure, suitable for construction in narrow spaces
Pruduct Show
Good quality Construction mining Double cylinder double action liquid injection pump
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Why Choose Us
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Product packaging
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
The machine body and corresponding accessories are packed with plastic film, and then the machine and accessories are shipped in fumigant-free wooden boxes.
Company Profile
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Be Focus Electromechanical Equipment Co., Ltd., which was founded in 1998, is a high-tech enterprise specializing in thedesign, R&D and innovation of concrete machinery for the engineering construction of mines, tunnel bridges, subway culverts,hydropower projects, underground projects and coal mine tunnels, as well as production and sales services.
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Corporate Culture
All employees of thecompany adhere to the principle that credibility is life, quality is survival, quality is used to gain trust,
brand is used toextract value, create differences, and service is used to win competition. They are your trusted and long-term
partners.
Excellent partner
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
Our company has long-term cooperation with many large enterprises at home and abroad, including the world's leading enterprises and national enterprises in the industry, which represents the recognition of our strength by our partners.
Industry Certificate
380V/220V Small Hydraulic Double-piston Concrete Pump for Refractory Grouting Machines
FAQ
1.Q: Are you the original manufacturer?
A: Yes. We are a foreign trade company integrating industry and trade, with our own independent production factory. 2.What are your warranty terms?
A: We provide different warranty periods for different products. For detailed warranty terms, please contact us. 3. Q: Delivery time
A: It takes 3-5 days for inventory products, and customized products need to be determined according to products 4. Q: What's the payment you accept ? A: As usual our payment is 30%T/T as deposit, and the 70% balance against the copy of B/L.Also we accept the payment such as L/C ,Escrow, Western Union Or PayPal .
