Customized Voltage CNC Rebar Bender Hoop Bending Machine with Automatic Function

Name: Customized Voltage CNC Rebar Bender Hoop Bending Machine with Automatic Function
Brand: BE-Focus
Price: 458.00 USD

Wholesale Customized Voltage CNC Rebar Bender Hoop Bending Machine with Automatic Function from china suppliers

Place of Origin : Henan, China

Brand Name : BE-Focus

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Not Available

Marketing Type : Hot Product 2023

Warranty of core components : 1 Year

Core Components : Bearing, Gearbox, Motor

Material / Metal Processed : Stainless steel, Rebar

Automation : Automatic

Year : 2024

Weight (KG) : 110

Key Selling Points : High-accuracy

Warranty : 1 Year

Motor Power (kW) : 3

Applicable Industries : Home Use, Manufacturing Plant, Construction works , Building Material Shops

Showroom Location : India, Kenya, Colombia, Tajikistan

Name : Rebar hoop bending machine

Usage : Stirrup making

Operation system : Manual/ Automatic/ CNC

Bending Rould Steel Diameter : 6-32mm

Bending Speed : 18R/Min(90°);16R/Min(135°)

Max Bending Angle : 0°-180°

Angle Error : ±1°

Motor Power : 3kw

Voltage : 220V/380V/415V/440V/customized

Certification : CE/ISO9001

Price : $458.00/sets 1-4 sets

MOQ : 1 set

Contact Now

Product Description

Customized Voltage CNC Rebar Bender Hoop Bending Machine with Automatic Function

The steel bar bending hoop machine is an improvement on the structure of the steel bar bending machine. Fully automatic CNC steel bar bending hoop machine, CNC steel bar bending hoop machine, steel bar bending hoop machine, composed of two sets of horizontal and vertical automatically adjustable straightening wheels, combined with 4 traction wheels, driven by imported servo motors to ensure the straightening of steel bars Achieve the best accuracy. One of the steel bar processing machines.

Product Paramenters

Model	GF20	GF25	GF28	GF32
Bending range(mm)	Round bar:4-20 Class bar: 4-18	Round bar:4-25 Class bar: 4-22	Round bar:4-28 Class bar: 4-25	Round bar:4-32 Class bar: 4-28
Bending speed	12-20 times/min	14-22 times/min	12-20 times/min	15-20 times/min
Motor power	2.2kw	3kw	3kw	3kw
Input voltage	3 phase 220v/380v/415v or customized
Motor speed	1440rpm
Overall size(mm)	855530830	850570900	900670900	750750870
weight(kg)	90	135	200	220
Driving mode	gear

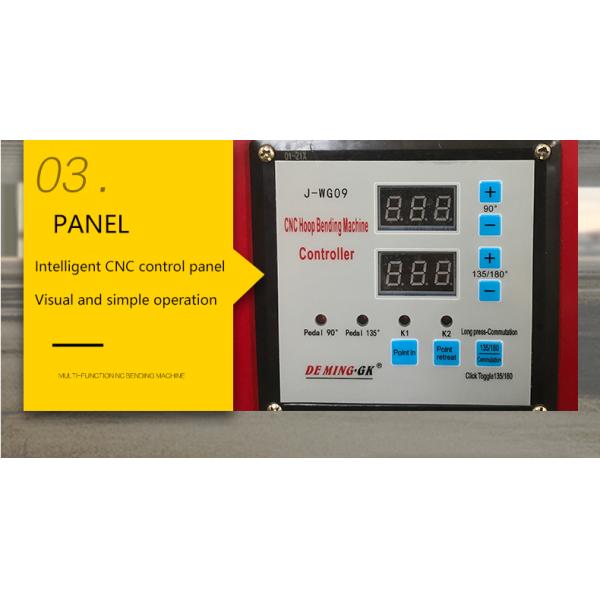

Operation mode	Travel switch control or digital control panel

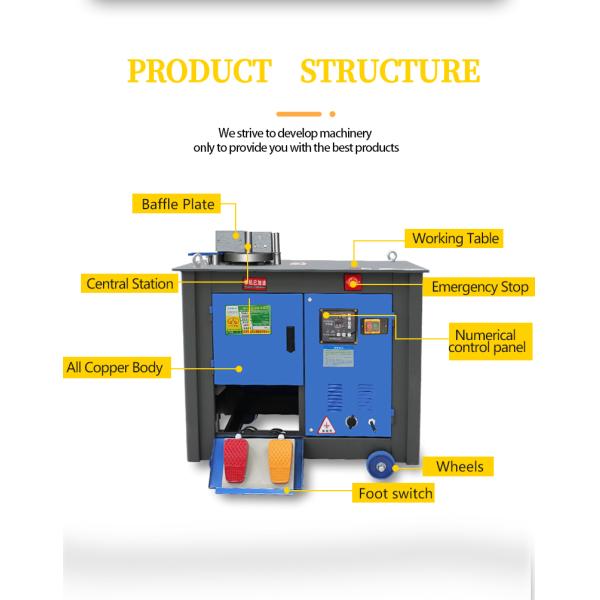

Product details

Product advantage

1. Copper core motor is resistant to high temperature, fast heat dissipation and stable operation. 2.quenching forging gear, strong and durable. 3. Manually bend a variety of angles, use with the foot pedal anti-skid switch, the foot pedal will return automatically, and the safety performance is high. 4.complete models, support customization, manufacturers, quality, after-sales. 5. Wide scope of application: construction sites, steel bar processing centers, bridge construction, building materials companies and engineering construction.

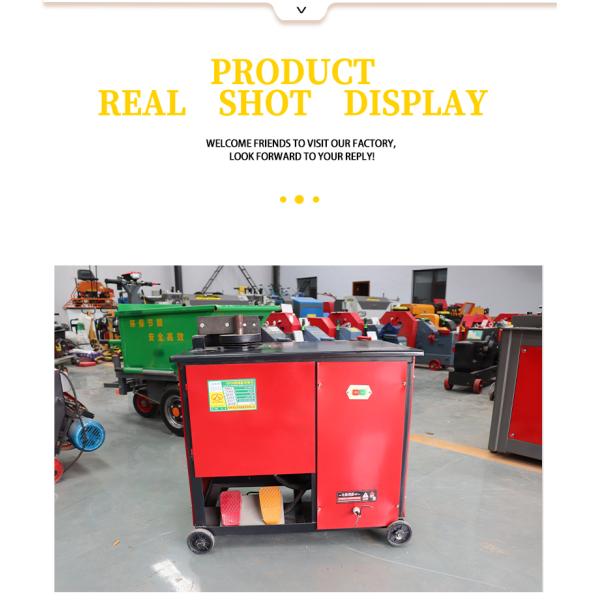

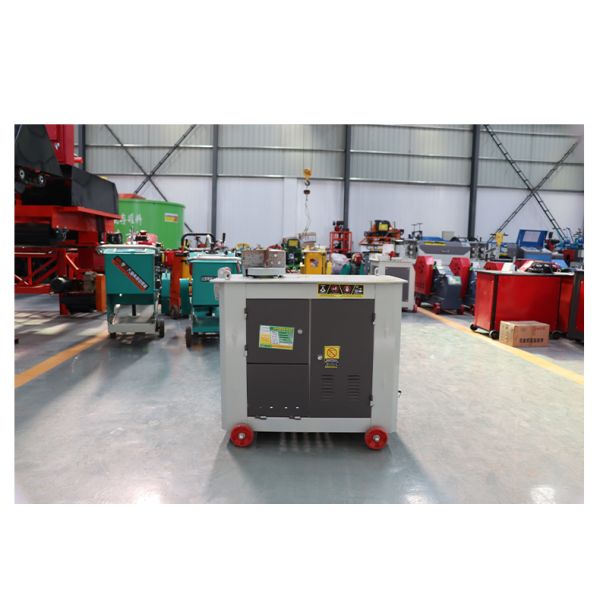

Pruduct Show

Product packaging

We adopt wooden and iron box to pack machines, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient

Company Profile

Henan Be Focus Mechanical Equipment Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co., Ltd. was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.

Certifications

Customer Photos

FAQ

1. Who are we? We are based in Henan, China, start from 2005,sell to Domestic Market(40.00%),North America(15.00%),Southeast Asia(10.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Western Europe(5.00%),Eastern Europe(3.00%),Mid East(2.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 21-50 people in our office. 2. How can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.What can you buy from us? Concrete Mixer,Concrete Pump,Concrete Road Paver,Steel Bar Straightening and Cutting Machine,Steel Bar Bending Machine 4. Why should you buy from us not from other suppliers? Henan Tatooine Machinery Manufacturing Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system.

5. What services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
